Field data that holds its position
Licensed surveyors and geospatial techs live and die by the coordinate system: a boundary, control, or as-built file read on the wrong datum lands feet from where it belongs. Smart Site Plan transforms your State Plane, UTM, or any EPSG-coded data from the source's defined coordinate system to WGS84 on import, so your own points and linework sit in context against mapped parcels, easements, and imagery. The mapped parcels are a reference, not a substitute for your survey or the recorded documents.

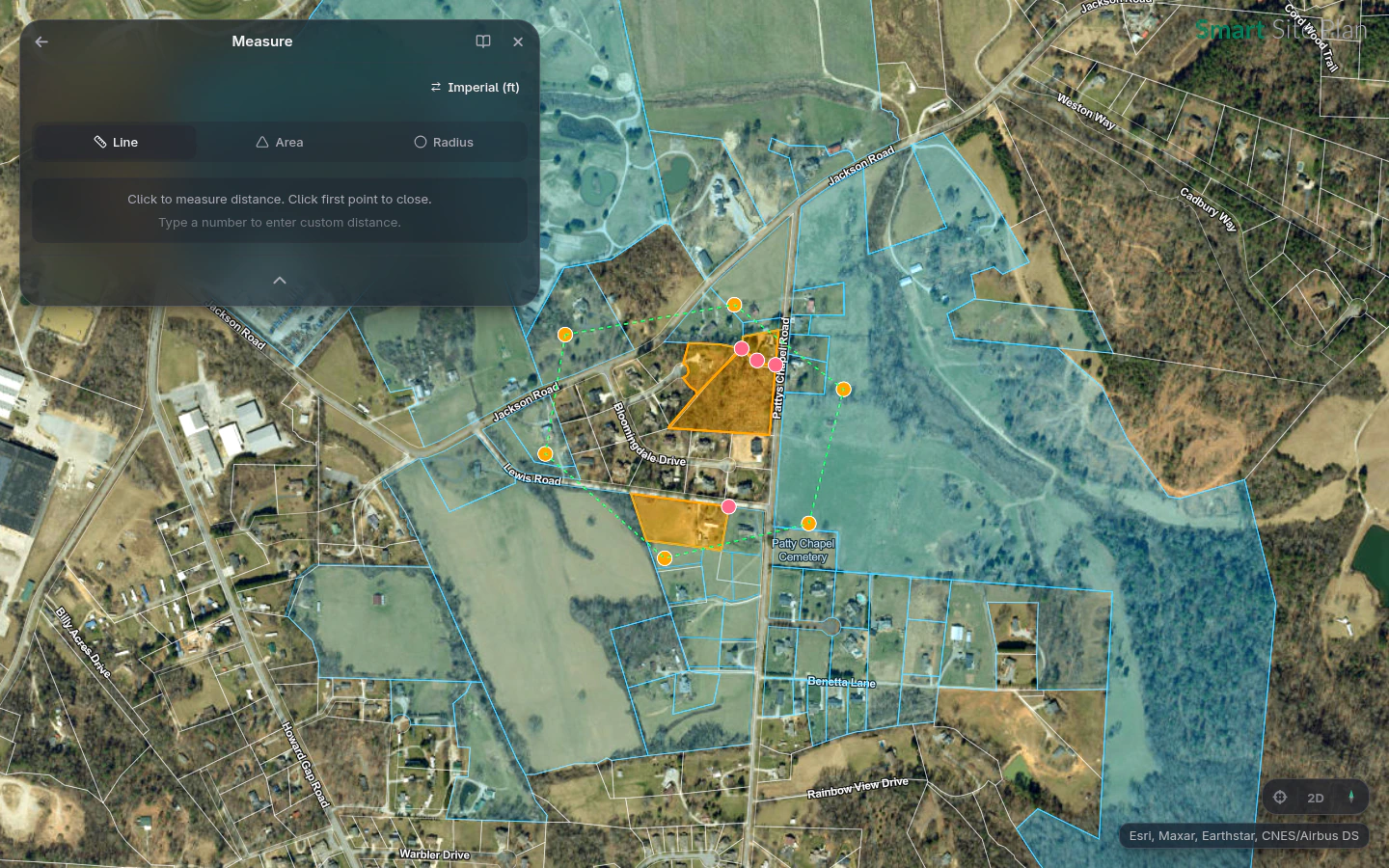

Surveying demo project over Fletcher, NC, captured in the product
The old way
Reprojection lives in a desktop seat back at the office, so the crew can't sanity-check a control network or a found monument against record parcels until the data is back on a workstation. A wrong EPSG code or an assumed datum slips through and a deliverable plots feet off, which means a return trip to the site.
With Smart Site Plan
Your State Plane and UTM data, reprojected on the way in
The data, already on the map
Drawn from 20 million open datasets, one click each. No agency portal hunting, no format wrangling.
Workflows
How Surveying work gets done
End to end, in the browser, on one map.
Boundary survey reconciliation
- 1. Import
Bring in the field-collected boundary and control as State Plane or UTM and let it reproject from its defined coordinate system on import.
- 2. Open Data
Add county parcels and recorded easements scoped to the view to compare your line work against the mapped record.
- 3. Measure
Check record-versus-found distances and bearings to corners with unit-aware readouts.
- 4. Draw
Lay in the boundary, setbacks, and lot lines with live length and area to check closure.
- 5. Export
Export the reconciled parcel as DXF for CAD and GeoJSON for the agency on Pro.
Control network and monument recovery
- 1. GPS
Track the crew live as they walk the site and recover monuments and control marks.
- 2. Photos
Pin geotagged photos of each found pin or cap at the location the device reports, so the next crew can find it.
- 3. Forms
Capture monument condition, type, and recovery notes on a custom form, filling drafts offline and submitting on reconnect.
- 4. Share
Send the PLS a view-only link to the questionable corners so they are reviewed before the crew demobilizes.
As-built check and plat exhibit
- 1. Import
Load the as-built surface and features in their native EPSG and reproject from that defined coordinate system.
- 2. Open Data
Pull USGS contours, NHD hydrography, and FEMA NFHL flood zones for context.
- 3. Smart Query
Flag any as-built feature falling inside an easement or a mapped flood zone.
- 4. Export
Export an HD PDF plat exhibit (Personal and up) and a GeoTIFF (Personal) for the deliverable package.
What you can do
Reproject from any defined coordinate system
Import Shapefile, DXF, GeoPackage, GeoJSON, CSV, GPX, KML, or FlatGeobuf carrying State Plane, UTM, or any EPSG code and it reprojects to WGS84 on the way in. Your control points, traverse, and boundary are transformed from the source's defined coordinate system, not dropped feet off on an assumed datum. Assessor parcels are mapped approximations, so they show context, not where a line legally falls.
Screen found monuments against the mapped record
Drop your control network and recovered monuments on the map next to mapped parcels and easements to spot a corner that looks wrong before you leave the site. Measure record-versus-found distances and bearings with unit-aware readouts to catch a busted closure or a misidentified pin; your survey and the recorded documents stay the authority.
Build and check the as-built in the browser
Overlay the as-built layer on aerial imagery and USGS contours, then Draw centerlines, setbacks, and lot lines with live length and area readouts to confirm geometry. Run a Smart Query to flag features outside an easement or a flood zone before the deliverable goes out.
Hand off clean DXF and GeoJSON deliverables
Pro exports points, lines, and parcels to GeoJSON, CSV, KML, Shapefile, GPX, DXF, SVG and GeoPackage, so the CAD side gets DXF and the agency's GIS gets GeoJSON or Shapefile. HD PDF plat exhibits start on Personal and GeoTIFF is on Personal, all on a known coordinate basis.
The capabilities Surveying teams lean on
Reproject on import, DXF on export
State Plane, UTM, and any EPSG code reproject from their defined coordinate system on import, and on Pro deliverables export back out as DXF and GeoJSON on a known basis.
Measure and Draw to record
Unit-aware distance, bearing, and area let you reconcile found geometry against recorded parcels and easements right in the browser.
Crew GPS and monument forms
Live GPS, geotagged monument photos, and offline forms keep the field crew's recovery work tied to the locations their devices report.
Parcels and easements on the map
Assessor parcels, recorded easements, USGS contours, and FEMA flood zones drop in scoped to the view to check your line work against record.
Illustrative workflow
Reconciling a Travis County boundary before demobilizing
Outside Austin in Travis County, Texas, a PLS imports a crew's GPS-collected boundary recorded in the Texas Central State Plane zone, and it reprojects from that zone's definition onto the map, beside the mapped easements and parcels added to the view. Measuring the found-versus-record distances to two corners turns up a half-foot bust on a recovered pin, and a view-only link sends the corner to the crew chief. The crew re-shoots it that afternoon, and the reconciled parcel goes out as DXF and GeoJSON without anyone driving back the next week.
What changes
- Deliverables are transformed from their defined coordinate system, not dropped feet off by a wrong datum or EPSG code
- Found monuments get screened against the mapped record before the crew leaves the site
- No return trips caused by a coordinate-system mistake caught too late
- Clean DXF for CAD and GeoJSON for agency GIS from one reprojected source, exported on Pro
- Monument recovery, photos, and notes stay pinned to the location each device reports
Surveying, answered
Yes. On import, data carrying a State Plane zone, a UTM zone, or any EPSG code is reprojected to WGS84, so it is transformed from its defined coordinate system and shown against parcels and imagery instead of feet off from an assumed datum. Mapped parcels and imagery carry their own positional error, so they are context, not control.
